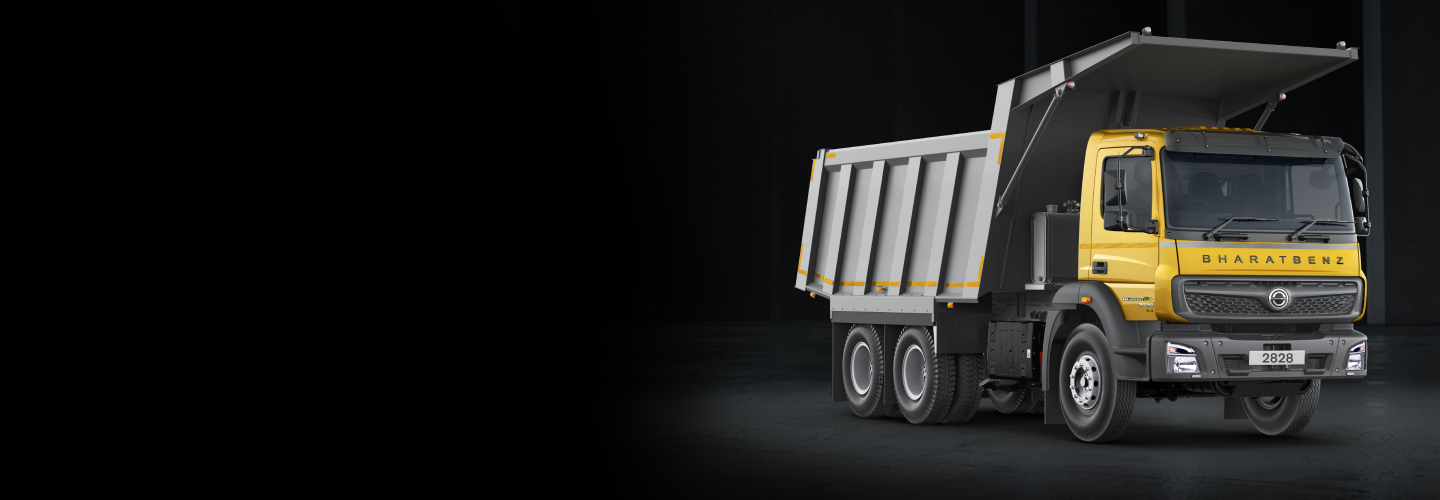

2828C
World-class technology for Indian roads. Explore our range of ultra-modern trucks.
HDTC 2828C
Specifications
Engine
| Engine Model | OM 926 |
| Maximum Power, kW | 210kW @ 2200 rpm |
| Maximum Torque, Nm | 1100Nm @ 1200 – 1600 rpm |
| No. of Cylinder, Displacement | 6 cylinder, 7200CC |
| Emission Standard | Bharat stage VI – OBD-2 |
Gearbox
| Gear Box Model & Type | G131, 9F+1R, Mechanical Synchromesh Gears |
| Clutch Type | Single Dry Plate, Hydraulic Control |
| Clutch Dia, Wear (mm) | 430, 3.5 |
| Power Take Off | Standard |
Axle
| Front Axle | IF 7.0 |
| Rear Axle | IRT390-11 |
| Rear Axle Ratio | 5.375 |
| Frame Section (D x W x T) (mm) | 288 x 70 x 9 |
| Front Suspension | Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers |
| Rear Suspension | Bogie Suspension |
| Anti-Roll Bar | Front : Standard/Rear RA2: Standard |
| Service Brake | Pneumatic Foot Operated, Dual Line with ABS |
| Parking Brake | Pneumatically Operated Hand Control Valve |
| Front Brake Size (mm) & Type | Ø 410 drum |
| Rear Brake Size (mm) & Type | Ø 410 drum |
| Cabin | Day Cabin |
| Steering Type | Hydraulic Power Assisted |
| Pattern & Size | Radial Tyres (11R20) Nylon Tyre (11×20) |
| Gross Vehicle Weight – (kg) | 28000 kgs Nylon Tyre; 27600 kgs Mining Tyre |
| Wheel Base (mm): | 4275 |
| Loading Span (ft) / Loadbody cpc (Cu.m): | 14 Cu.m Scoop |
| Overall Length (mm): | 7185/ 7485 (RMC chassis) |
| Overall Width (mm): | 2490 |
| Overall Height (mm) (CBC): | 2955 |
| Front Overhang (mm): | 1485 |
| Rear Overhang (mm): | 750/ 1050 (RMC chassis) |
| Ground Clearance (mm): | 282 |
| TCD (m) | 16.2 m for 4275mm WB,19 m for 4875mm WB |
| Maximum Gradeability (%) | 60.30% |
| Maximum Geared Speed (kmph) | 60 kmph |
| Fuel Tank / Filling Capacity (L) | 215L/200L |
| Adblue Tank / Filling Capacity (L) | 43L/ 36L |
| Battery Capacity (Ah) | 120Ah |
| Voltage (V) | 24V |
