2828C RMC
World-class technology for Indian roads. Explore our range of ultra-modern trucks.

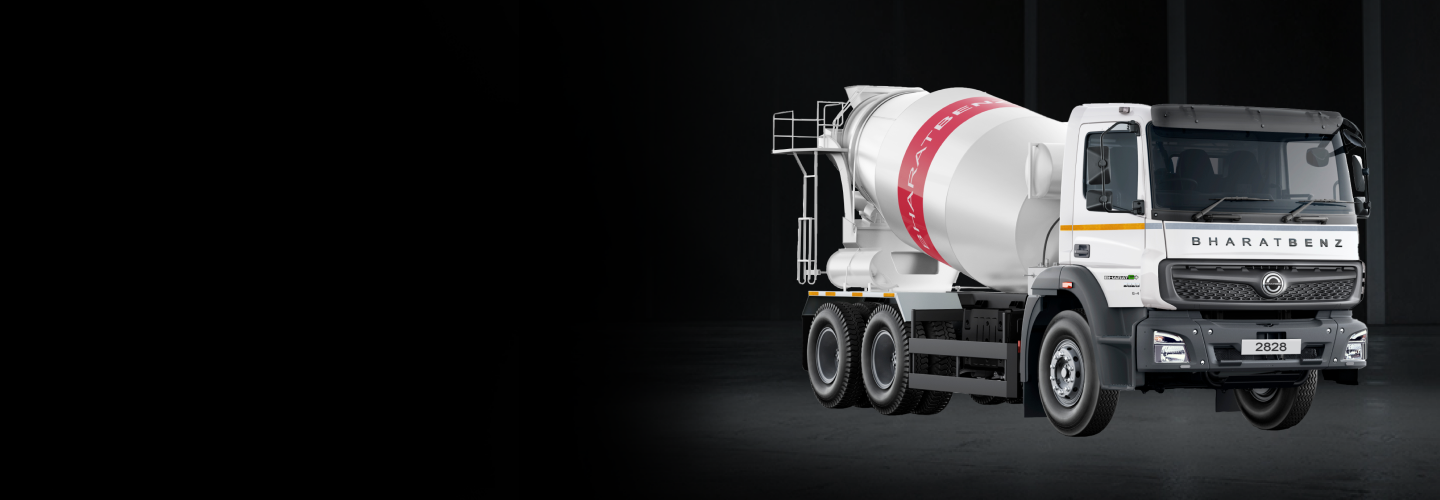

HDTC 2828C RMC
2828C RMC
Specifications
Engine
| Engine Model | OM 926 BSVI OBD-II |
| Maximum Power, kW | 280hp (210kW)@ 2200 rpm |
| Maximum Torque, Nm | 1100Nm @ 1200 – 1600 rpm |
| No. of Cylinder, Displacement | 6 cylinder, 7200CC |
Gearbox
| Gear Box Model & Type | G131, 9F+1R, Mechanical Synchromesh Gears |
| Clutch Type | Single Dry Plate |
| Clutch Dia, Wear (mm) | 430, 4.5 |
| Power Take Off | Standard, Spline Type |
Axle
| Front Axle | IF 7.0 |
| Rear Axle | IRT 390-11 Single Reduction with Diff Lock |
| Rear Axle Ratio | 5.375 |
| Frame Section (D x W x T) (mm) | 288 x 70 x 9 |
| Front Suspension | Parabolic Type Leaf Spring with 2 Hydraulic Shock Absorbers |
| Rear Suspension | Bogie Suspension |
| Anti-Roll Bar | Front: Standard Rear RA2: Standard |
| Service Brake | Pneumatic Foot Operated, Dual Line with ABS |
| Parking Brake | Pneumatically Operated Hand Control Valve |
| Front Brake Size (mm) & Type | Ø 410 drum |
| Rear Brake Size (mm) & Type | Ø 410 drum |
| Cabin | Day Cabin |
| Steering Type | Hydraulic Power Assisted (Telescopic And Tilt Type) |
| Pattern & Size | 295/90R20 |
| Gross Vehicle Weight – (kg) | 28000 kgs |
| Wheel Base (mm): | 4575 |
| Loading Span (ft) / Loadbody cpc (Cu.m): | 8 & 9 |
| Overall Length (mm): | 9475 |
| Overall Width (mm): | 2600 |
| Overall Height (mm) (CBC): | 3830 |
| Front Overhang (mm): | 1485 |
| Rear Overhang (mm): | 2740 |
| Ground Clearance (mm): | 290 |
| TCD (m) | 16.12 m |
| Maximum Gradeability (%) | 60.80% |
| Maximum Geared Speed (kmph) | 60 kmph |
| Fuel Tank / Filling Capacity (L) | 280L/260L |
| Adblue Tank / Filling Capacity (L) | 60L/ 50L |
| Battery Capacity (Ah) | 120Ah |
| Voltage (V) | 24V |
