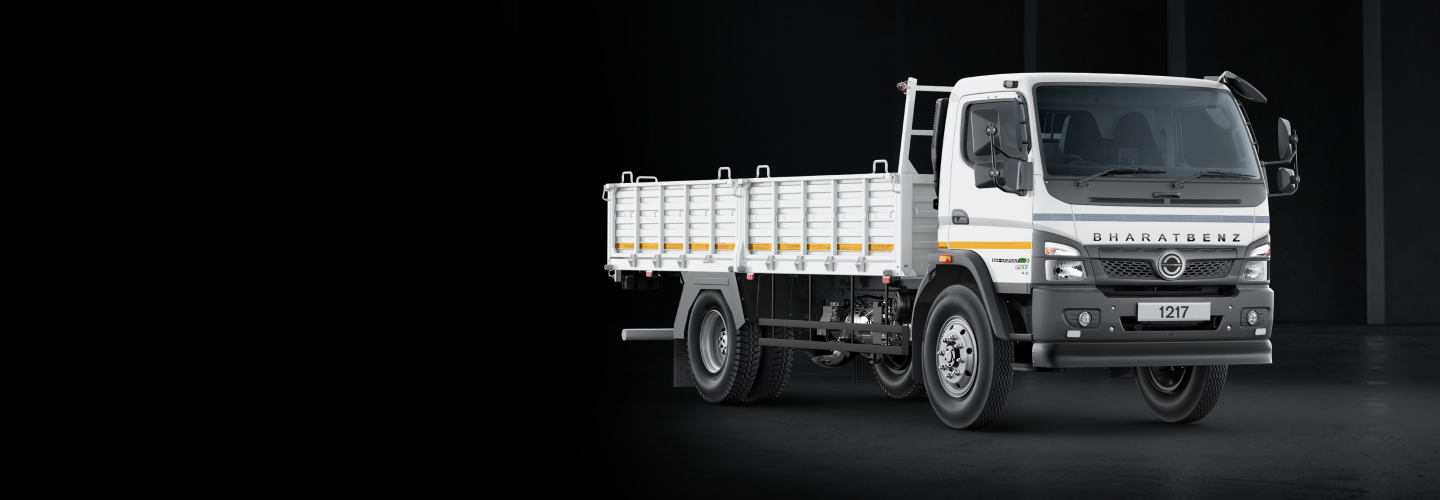

1217R
World-class technology for Indian roads. Explore our range of ultra-modern trucks.
MDT 1217R
Specifications
Engine
| Engine Model | 4D34i |
| Maximum Power, kW | 125 kW @ 2500 rpm |
| Maximum Torque, Nm | 520 Nm @ 1200 – 1600 rpm |
| No. of Cylinder, Displacement | 4 cylinder, 3900CC |
| Emission Standard | Bharat stage VI – OBD-2 |
Gearbox
| Gear Box Model & Type | Improved G85, 6F+1R, Mechanical, Synchromesh Gears |
| Clutch Type | Single Dry Plate, Hydraulic Control |
| Clutch Dia, Wear (mm) | 362, 3.6 |
| Power Take Off | Auxiliary Fitment |
Axle
| Front Axle | IF 5 |
| Rear Axle | DANA S 145 |
| Rear Axle Ratio | 4.56 (S), 6.33 (O) |
| Frame Section (D x W x T) (mm) | 228 x 80 x 6, 228 x 80 x 6, 228 x 80 x 6, 228 x 80 x 6 |
| Front Suspension | Multileaf Spring, Multileaf Spring, Multileaf Spring, Multileaf Spring |
| Rear Suspension | Multileaf Spring, Multileaf Spring, Multileaf Spring, Multileaf Spring |
| Anti-Roll Bar | Front Standard, Rear Optional |
| Service Brake | Pneumatic Foot Operated, Dual Line with ABS |
| Parking Brake | Spring Actuated with Hand Brake Valve @ cab |
| Front Brake Size (mm) & Type | Ø 360 drum |
| Rear Brake Size (mm) & Type | Ø 360 drum |
| Cabin | Day Cabin |
| Steering Type | Hydraulic Power Assisted |
| Pattern & Size | Radial tyres – 8.25R20 Tubeless tyres – 255/70R22.5 |
| Gross Vehicle Weight – GVW | 11990 kgs |
| Wheel Base (mm): | 3360 | 3760 | 4250 | 4800 |
| Loading Span(mm) | 4580 | 5185 | 6150 | 6395 |
| Overall Length (mm): | 6380 | 6985 | 7950 | 8250 |
| Overall Width (mm): | 2205 | 2205 | 2205 | 2205 |
| Overall Height (mm) (CBC): | 2420 | 2420 | 2420 | 2420 |
| Front Overhang (mm): | 1275 | 1275 | 1275 | 1275 |
| Rear Overhang (mm): | 1745 | 1950 | 2425 | 2120 |
| Ground Clearance (mm): | 205 | 205 | 205 | 205 |
| TCD (m) | 13.9m | 14.8m | 16.7m | 18.7m |
| Maximum Gradeability (%) | 6.33 RAR – 44.2% ; 4.56 RAR – 30.2% | |||
| Maximum Geared Speed (kmph) | 80 kmph | 80 kmph | 80 kmph | 80 kmph |
| Fuel Tank / Filling Capacity (L) | 171L/160L | 215L/200L | 215L/200L | 215L/200L |
| Adblue Tank / Filling Capacity (L) | 43L/ 36L | 43L/ 36L | 43L/ 36L | 43L/ 36L |
| Battery Capacity (Ah) | 75Ah |
| Voltage (V) | 24V |
