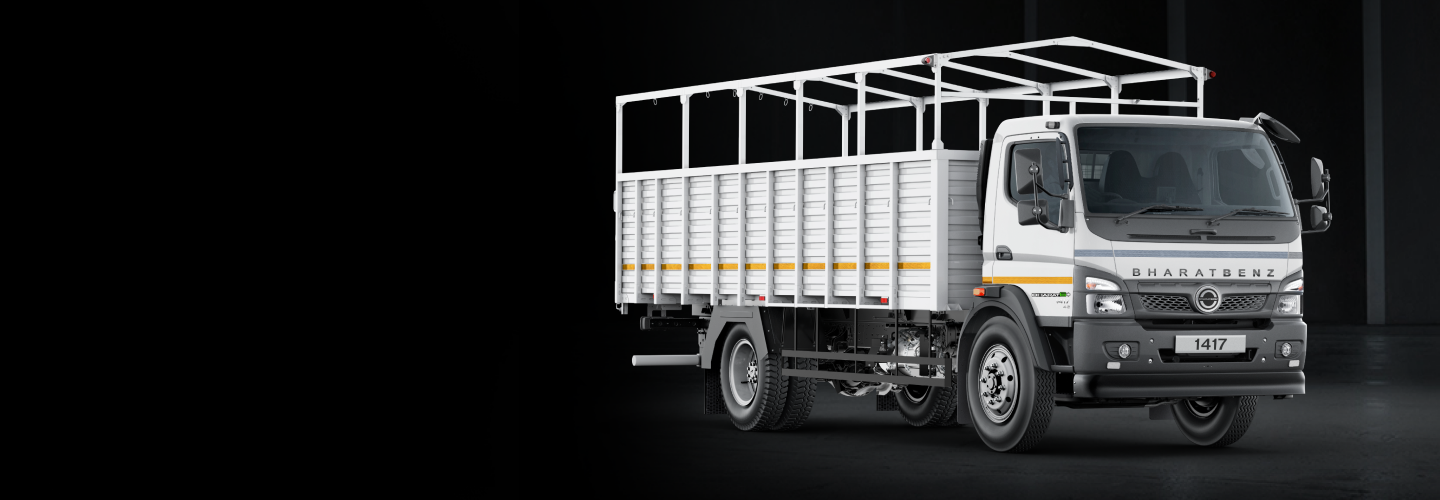

1417R
World-class technology for Indian roads. Explore our range of ultra-modern trucks.
World-class technology for Indian roads. Explore our range of ultra-modern trucks.
Engine
Engine Model | 4D34i |
Maximum Power, kW | 125 kW @ 2500 rpm |
Maximum Torque, Nm | 520 Nm @ 1200 – 1600 rpm |
No. of Cylinder, Displacement | 4 cylinder, 3900CC |
Emission Standard | Bharat stage VI – OBD-2 |
Gearbox
Gear Box Model & Type | Improved G85, 6F+1R, Mechanical, Synchromesh Gears |
Clutch Type | Single Dry Plate, Hydraulic Control |
Clutch Dia, Wear (mm) | 362, 3.6 |
Power Take Off | Auxiliary Fitment |
Axle
Front Axle | IF 5.0 |
Rear Axle | DANA – S145 |
Rear Axle Ratio | 4.56 (S), 6.33 (O) |
Frame Section (D x W x T) (mm) | 228 x 80 x 6, 228 x 80 x 6, 228 x 80 x 6, 228 x 80 x 6 |
Front Suspension | Multileaf Spring, Multileaf Spring, Multileaf Spring, Multileaf Spring |
Rear Suspension | Multileaf Spring, Multileaf Spring, Multileaf Spring, Multileaf Spring |
Anti-Roll Bar | Front Standard, Rear Optional |
Service Brake | Pneumatic Foot Operated, Dual Line with ABS |
Parking Brake | Spring Actuated with Hand Brake Valve @ cab |
Front Brake Size (mm) & Type | Ø 360 drum |
Rear Brake Size (mm) & Type | Ø 360 drum |
Cabin | Day Cabin |
Steering Type | Hydraulic Power Assisted |
Battery Capacity (Ah) | 75Ah/100Ah(HAP) |
Voltage (V) | 24V |
Pattern & Size | Radial tyres – 8.25R16 Tubeless tyres – 235/70R17.5 |
Gross Vehicle Weight – GVW | 14 kgs | 050 kgs |
Wheel Base (mm): | 3360 | 3760 | 4250 | 4800 | 5050 |
Loading Span(mm) | 4580 | 5275 | 6230 | 6780 | 7495 |
Overall Length (mm): | 6380 | 7075 | 8030 | 8580 | 9295 |
Overall Width (mm): | 2240 | 2240 | 2240 | 2240 | 2240 |
Overall Height (mm) (CBC): | 2475 | 2475 | 2475 | 2475 | 2475 |
Front Overhang (mm): | 1275 | 1275 | 1275 | 1275 | 5050 |
Rear Overhang (mm): | 1745 | 2040 | 2505 | 2505 | 2970 |
Ground Clearance (mm): | 220 | 220 | 220 | 220 | 220 |
TCD (m) | 13.9m | 14.8m | 16.7m | 18.7m | 19.7m |
Maximum Gradeability (%) | 6.33 RAR – 38.6% ; 4.56 RAR – 25.4% | ||||
Maximum Geared Speed (kmph) | 70kmph (for Radial Tyres) / 80kmph (for Tubeless Tyres) |
Adblue Tank / Filling Capacity (L) | 43L/ 36L | 43L/ 36L | 43L/ 36L | 43L/ 36L | 43L/ 36L |
Fuel Tank / Filling Capacity (L) | 215L/200L | For 3360 – 171L/160L |
